PLC 0.45mm 2.6mm Mesh Welding Machine With Wire Roll

Ask Lasest Price
Brand Name :	JINTE
Model Number :	JT-W
Certification :	ISO CE
Price :	USD 24500-28000 /set
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	1 set/month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

PLC 0.45mm 2.6mm Mesh Welding Machine With Wire Roll

Best Selling Products Welding Mesh Machine With Wire Roll Factory Price

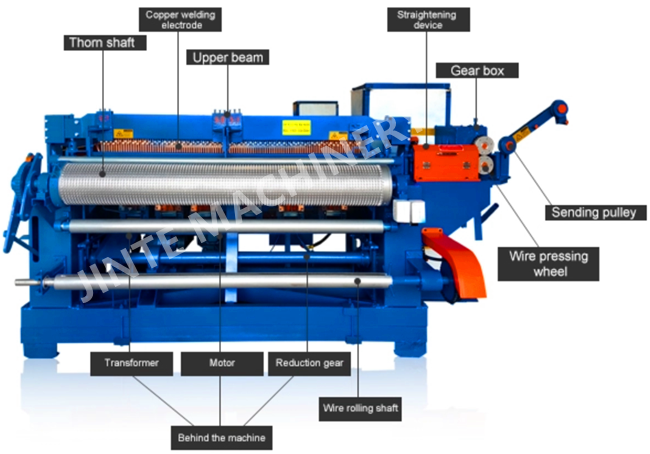

Welded Wire Mesh Machine Introduction

Machine Name	Full automatic welding wire mesh machine for roll
Model	JT-W
Place of Origin	Hebei, China
Certification	ISO,CE
Automatic	Full automatic
Warranty	1 Year
The Machine Structure	Vacuum casting and steel welding

Welded Wire Mesh Machine Technical Parameter

Welding wire diameter	0.6-0.8 mm
Mesh size	1/4"-4"
Mesh width	600-2100 mm
Welding speed	80-120 times/min
Voltage	380v-415v,3 phase electric 50HZ
power	85KVA*6
Dimension	250015001200 mm
Weight	2600 kg

Welded Wire Mesh Machine Advantages

1. Both of line wire and cross wire are fed from wire coils automatically.

2. Raw material can be black wire, galvanized wire or stainless steel wire.

3. One time two or three mesh rolls can be produced.

4. The mesh roll length can be set by counter switch on the control panel.

5. The welding transformers can be adjusted for different wire diameters.

6. The welding time and welding current can be adjusted on the control panel to guarantee solid welding.

7. Sturdy structure and world famous electric components are used like Simens, Schneider, Delta etc.

8.Water cooling transformer is used for hot area.

9.Patent design for process of thick hard black wire.ne time two or three mesh rolls can be produced.

Welded Wire Mesh Machine Popular Specification

Mesh width:1m, 1.2m, 1.5m, 2m, and 2.5m
Minimum mesh opening size:12.5mm, 25mm, 50mm
Warmly tips: we can design the machine according to your wire diameter, mesh hole size and mesh width.
