PLC Control Heavy Duty With Low Noisy Wet Wire Drawing Machine

Wire Drawing Machine Product Description

1. Equipment comprising

(1) Wire drawing machine

(2) Man-machine interface control

(3) Whole set of electric console

2. Main technical parameter ( key points):

(1)Max entering (steel) wire dia.:2.0mm

(2) Min exiting (steel) wire dia.:0.4mm

(3)Pulling steel wire material:ss430,ss201,ss304,q195,etc

(4)Max. steel wire drawing speed:10m/s

(5)Motors:main motor 11KW, take in motor 4KW AC freq. con. motor

(6)Step pulley:

(7) Electric Control system

Arrangement (We can arrange them as customers' require)

a. Inverter:INVT inverter is adopted.

b. Low voltage electric appliances including relay: Chint Brand

Wire Drawing Machine Technical Parameter

Wire Drawing Machine Usage

This type is used for drawing and annealing copper wire from 1.0mm to 0.15-0.35mm.

Wire Drawing Machine Advantage

1.Features:Water tank wire drawing machine also called wet type wire drawing machine.

2.Product application:The equipment with frequency inverter and high speed drawing.

3.It's mainly used for drawing thin wire diameter.

4.The finished black annealed wire is for construction wire,binding wire and galvanized wire.

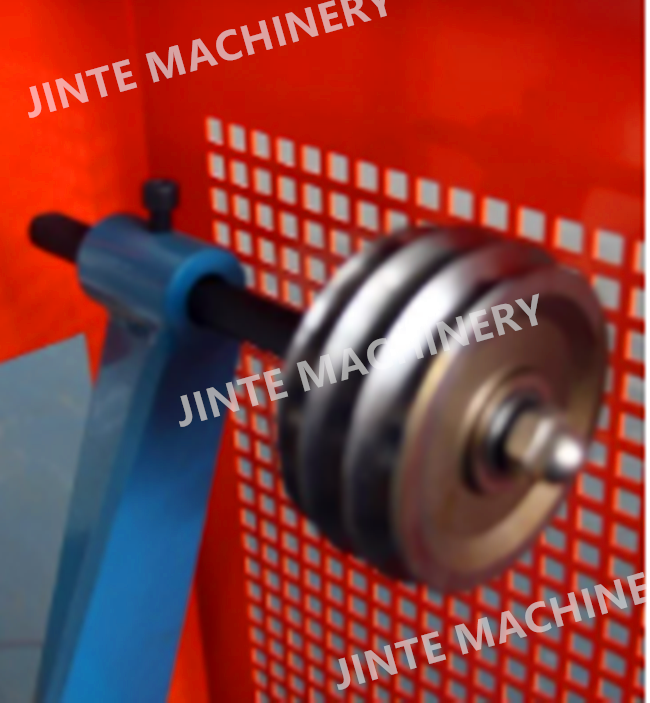

Wire Drawing Machine Images

Since 1992,Jinte have been developing,Designing and manufacturing high technology machines for the wire mesh machinery, has been in the metal mesh industry for over 25 years. The company has been developing smoothly and quickly and it has more than 120 employees. And the company has own wire mesh machineries and several pilot plants with strong technical force and advanced production and check out equipments.
Thanks to its “in-house” innovative engineering know-how, enriched through continuous research, development and field experience, the company has rapidly grown to a very successful supplier of a comprehensive line of standard and custom built machines and complete plants such as:

Hexagonal mesh weaving machine (chicken wire machine)
Chain link mesh machine
Barbed wire machine
Gabion machine
Grassland field fence machine,etc.

With the good service and high technology quality machine, We got proved and praise from our clients. From 2012 to till now. Our machine are widely exported to India, Egypt, France. Iran, Indonesia. Malaysia. Jordan, Bahrain and Africa etc. 25countries till now.

We aim to set new standards together with our customers and endeavor to make the largest contribution possible in making the world cleaner, safer, more beautiful, and ultimately more worth living in.
