Galvanized Hurricane 5.5Kw Diamond Mesh Making Machine

Ask Lasest Price
Brand Name :	Jinte
Certification :	CE/ISO9001
Price :	negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8 Set/Sets per Month
Delivery Time :	25 work days

Add to Cart

Product Details
Company Profile

Galvanized Hurricane 5.5Kw Diamond Mesh Making Machine

Galvanized Hurricane Diamond Mesh Semi Chain Link Fence Making Machine

Chain link fence making machine description

Chain link fence machine is also called diamond mesh machine.It is suitable for the production

of various diamond-shaped nets of electro-galvanized, hot-dip galvanized and PVCThe mesh is widely used,

it can be used to raise chicken, duck, goose, rabbit and zoo fence, mechanical equipment protection, highway

guardrail, stadium fence, and road green belt protection net.

Chain link fence machine performence

1.It could work both of galvanized wire and pvc coated wire.
2.With alarm system for emergency matters occure.
3.Stop automaticlly.
4.With single/double wire feeding system.
5.It could adjust the mesh width automaticlly.
6.With high working efficiency and low noise.

Technical parameter

Capacity	80-120(m2/hour)
Wire Diameter	2.0-4mmFeeding Wire Numbers: two (Note: Steel Wire Standard: GB3081-82 YB544-65; Material Standard: B1F-B3F
Size of Mesh	30x30-100X100(mm)
Netting Width	500-4000(mm)
Power and Rated voltage	9.0KW 380V,50HZ

Full Automatic Chain Link Fence Machine

adopts single wire feeding system.It can weave hole size from 25mm*25mm to 120mm*120mm with wire

diameter from 1.5mm to 5.0mm.This type machine is popular in India market.It can work with hard wire and

working performance is very good.

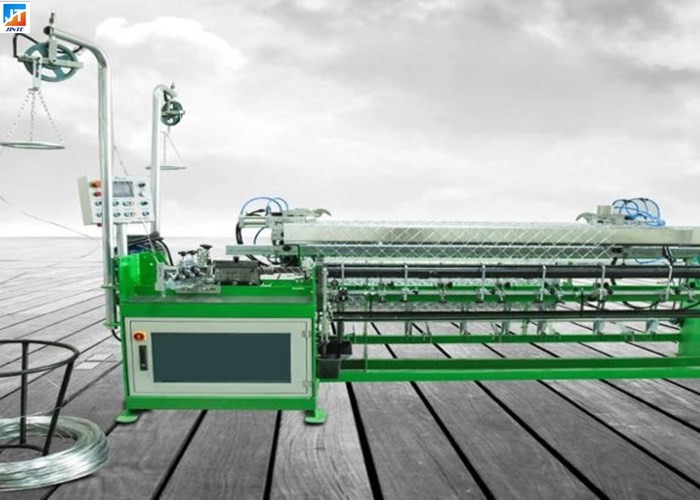

Product details image

Galvanized Hurricane 5.5Kw Diamond Mesh Making Machine

Guarantee and After-sale Service

1.Maintenance period:one year

2.If the buyers need, we can send our technical staff to the buyers’ place to debug the machine and

providing the training in 30 days after the machines arrive at the destination port.

3.The debugging fees: free

4.The training fees: USD100/day for each technical

5.The numbers of technical persons: one technical person per machines at most

6.The fees ,such as round-trip tickets, accomodation etc, are all in buyers’ account. During the maintenance

period: the parts damaged non-artificially will be provided free of charge. If you need the technicians, we will

assign the expertised staff to your company. And the fees,such as round-trip tickets, accomodation etc,

are all in your account. After the maintenance period: If you need the machine parts, we will provide it

as our cost. If you need the technicians, we will assign the expertised staff to your company. And the fees,

such as round-trip tickets, accomodation etc, are all in your account.
