    100m2/Hour 25x25mm ISO Chain Link Fence Machine

    Ask Lasest Price
    Brand Name : JINTE
    Model Number : JT-C
    Certification : ISO CE
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10sets/month
    Delivery Time : 10days
    • Product Details
    • Company Profile

    100m2/Hour 25x25mm ISO Chain Link Fence Machine

    100m2/Hour 25*25mm Fully Automatic Chain Link Fence Machine


    Chain linke fence machine product description


    The automatic chain link fence machine is welded of high-quality steel and channel steel with a PLC control system, so the frame of the machine will be more stable and stronger, and the height of the frame can be adjustable.
    Easy operation and high-speed efficiency. We mainly have two models of machines: Double wire and Single wire.

    100m2/Hour 25x25mm ISO Chain Link Fence Machine


    Chain link fence machine performance


    1. Weaving module: Single die double spiral wire feeding method, high output.


    2. The machines are controlled by touch screen, famous brand electrical components. Easy to operate. Electrical appliances are durable and have a low failure rate.About our main machine, we have adopted the Servo Motor(Delta, Housine) and Reducer. Work efficiency increased by three times, saving electricity and high output.


    3.Automatic locking device:The machines can implement three types of automatic locking: Knuckled and twisted, or knuckle, or twisted.


    4.Automatic roll netting device:The machines are equipped with a rolling net device, which can reduce costs.


    Chain link fence machine advantage


    1.Work procedure like single wire, but double wire work together to improve the efficiency.
    2.It can suite different kind of wire strength, even one wire galvanized and the other wire Black wire also can suite this machine well.


    Chain link fence machine technical parameter


    Item
    Double wire
    Fully automatic chain link fence machine
    Wire Dia.
    1.8-5.0mm
    Hole Size
    30*30mm-120*120mm
    Material
    Galvanized wire, PVC wire
    Width
    2m
    3m
    4m
    Capacity
    30-160M2/h
    Power
    5.5kw/h
    Mould
    4set mould for free
    Size (L*W*H)
    5*2.2*1.7M
    6*2.2*1.7M
    7*2.2*1.7M
    Weight
    1.9T
    2.0T
    2.1T
    Warranty
    One year
    Operation
    one person control 2 machine

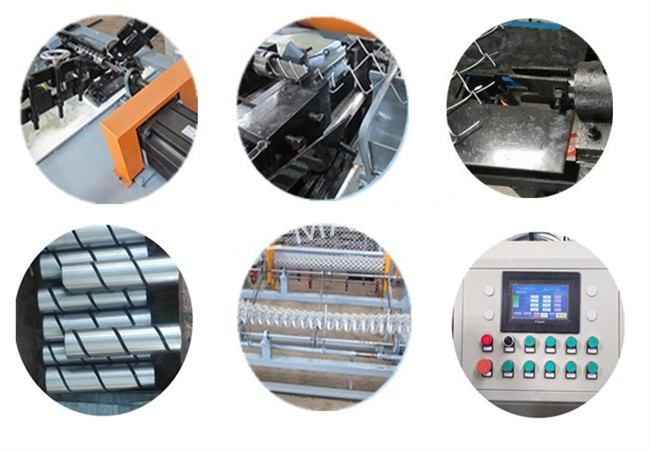

    Chain link fence machine details
    100m2/Hour 25x25mm ISO Chain Link Fence Machine100m2/Hour 25x25mm ISO Chain Link Fence Machine
