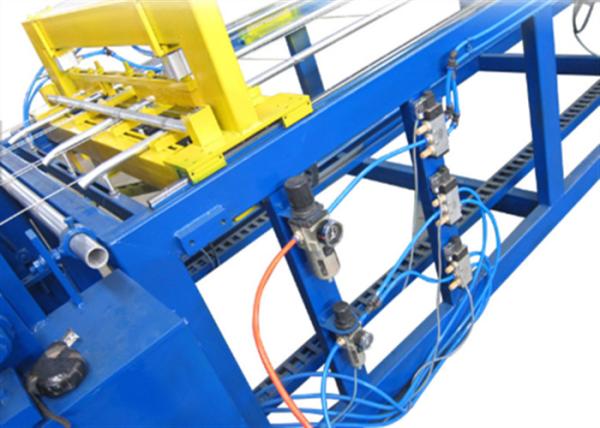

Machine Description
Brick belt mesh welding machine adopts CNC synchronous control
technology, welding time and sub-control welding time are composed
of PLC digital programming system, double servo motor pull net,
input panel for touch screen or keyboard two, the operation is more
intelligent, reasonable.The equipment has the advantages of stable
performance, firm welding spot and precise welding size.The machine
adopts power electronic synchronous control technology, which can
automatically slice and roll, with high output, stable performance,
firm welding spot and no burn mark.
1.The machine adopts synchronous control technique.
2.The welding time and separate welding are controlled by PLC for
system digital input panel or touch screen buttons.It can be more
intelligent operations and rationalizing.
3.The advantages of the device are stable performance ,strong
welding spot and accurate weldingaperture.
4.The machine adopts synchronous control technology of power
electric,auto-sharding,automatic rolling,high yield,stable
performance,strong welding spot,without welded tracks.
5.It is easy for operator.
It is usually applied to wall reinforcement,has the characteristics
of seismic resistance.
Main Parameter
| Wire diameter | 1.6-3.0mm | Warp wire distance | 40mm |
| Welding type | Pressure welding | Weft wire distance | 100-500mm |
| Mesh width | 300mm | Voltage | 380V 3p 50HZ |
| Machine weight | 1.5T | Welding power | 65KVA |
| Welding speed | 50-60times/min | Machine size | 3.2*2.0*1.4m |
Performance and usages:
Brick belt mesh welding machine adopts CNC synchronous control
technology, welding time and sub-control welding time are composed
of PLC digital programming system, double servo motor pull net,
input panel for touch screen or keyboard two, the operation is more
intelligent, reasonable.The equipment has the advantages of stable
performance, firm welding spot and precise welding size.The machine
adopts power electronic synchronous control technology, which can
automatically slice and roll, with high output, stable performance,
firm welding spot and no burn mark.
| Wire diameter | 1.5-3.2mm |
| Mesh opening | 75-300mm |
| Mesh width | 1000mm |
| Power | 85kva*1 |
| Voltage | AC 380v 3phrase 50HZ |
| speed | 70-80times/min |
| Welding quantity | 6pcs |
| Main motor | 3.0KW(frequency) |
| Machine size | 6500*2500*1400mm |
| weight | 2000kg |
| Mesh pulling type | Double servo motor reciprocating drawing |
| Welding material conductivity | 55ms/m |
| Supply transformer capacity(KVA) | 100 |
| Welding type | SCR stage welding |
| Press type | Spring press |
| Section area of each phase (copper) line | 70square meter |
| Machine list | Main motor 1set Control cabinet 1set Pay off stand *7 pcs |
Packaging & Shipping
Packaging Details: Plastic bag or at customers' request.
Delivery Time: Shipped in 45 days after payment.
Our Services
Pre-sale service
1. Select equipment model.
2. Design and manufacture products according to clients' special
requirement.
Services during the sale
1. Pre-check and accept products ahead of delivery.
2. Help clients to draft solving plans.
After-sale service
1. We will reply you for your inquiry in 24 hours.
2. After you get the products, we'll send technicians to your factory.
Then they will guide your workers to install and debug the machine
patiently untill the machine can work normally. Since our factory
established, our after-sale team had been to many contries and
received customers' critical acclaim.
