Automatic Good price Welded wire mesh machine With High speed Galvanized steel

Product Description

Technical parameter

Model: a.JT-DNW-1 b.JT-DNW-2 c.JT-DNW-3

Wire Diameter:

a.0.4-0.65mm b.0.65-1.8mm / 0.8-2mm / 0.65-2mm c.1.0-2.2mm / 1.2-2.5mm

Aperture/Pitch:

a.1/4",1/2" b.1/2", 1", 1.5" ,2",2.5",3" c.1", 2", 3", 4" ,5",6" d.6.25, 12.5mm e.12.5, 25, 50mm f.25, 50, 75, 100mm

Mesh width:

a.Max.1m, 1.2m b.Max.1.2m,1.5m, 2m c.Max.1.2m, 1.5m, 2m, 2.5m

Motor:

a.3kw b.3kw; 4kw c.4kw; 5.5kw, 7.5kw

Welding speed :

a. Max.75 rows/min b.Max.120-180 rows/min c.Max.80-120 rows/min

Transformer:

a.50kva*3 b.60kva*4;60kva*5, 60kva*7 c.70kva/80kva*5/6/7/8

Weight:

a.1.5T b.2T, 2.5T c.2T, 2.5T, 3T, 3.5T

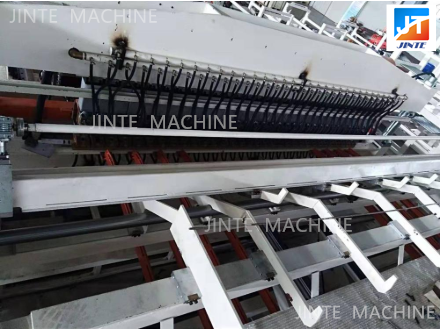

Detaild images

Advantage

1.Easy operated

2.High production

3.Advanced technology electronics.

4.Separate control technology, make welding transformers working separately to reduce needed capacity.

5.Different position of button and control box with inverter (Taiwan Delta), not easily broken like before, easier to operate.

6.Sealed welding transformers, it has 8 degrees, can be adjusted for different wire diameters.

7.Square steel bottom instead of angle iron bottom. 1.5mm steel plate instead of 0.2-0.3mm steel plate, more stable.

Contact us

Finished Products

Packing & Shipping

Since 1992,Jinte have been developing,Designing and manufacturing high technology machines for the wire mesh machinery, has been in the metal mesh industry for over 25 years. The company has been developing smoothly and quickly and it has more than 120 employees. And the company has own wire mesh machineries and several pilot plants with strong technical force and advanced production and check out equipments.
Thanks to its “in-house” innovative engineering know-how, enriched through continuous research, development and field experience, the company has rapidly grown to a very successful supplier of a comprehensive line of standard and custom built machines and complete plants such as:

Hexagonal mesh weaving machine (chicken wire machine)
Chain link mesh machine
Barbed wire machine
Gabion machine
Grassland field fence machine,etc.

With the good service and high technology quality machine, We got proved and praise from our clients. From 2012 to till now. Our machine are widely exported to India, Egypt, France. Iran, Indonesia. Malaysia. Jordan, Bahrain and Africa etc. 25countries till now.

We aim to set new standards together with our customers and endeavor to make the largest contribution possible in making the world cleaner, safer, more beautiful, and ultimately more worth living in.
