3kw 50*50mm Welded Wire Mesh Machine For Construction

Ask Lasest Price
Brand Name :	JINTE
Model Number :	JT-DNW-1
Certification :	ISO, CE
Price :	USD 9000-2500/set
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	10sets/month
Delivery Time :	10 work days

Add to Cart

Product Details
Company Profile

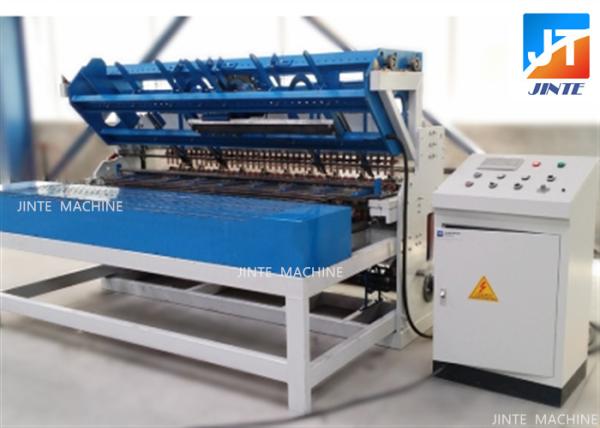

3kw 50*50mm Welded Wire Mesh Machine For Construction

PLC Automatic Construction Welded Wire Mesh Machine Supplier

Product Description

Widely used for each kinds of fence , hardware mesh, goods shelf, cages, wire frame, steel plate stiffener and others multiple spot welding. Continuous welding wire mesh whose width is within 2000mm, length is not restricted.

Technical parameter

Mode	JT-DNW-1	JT-DNW-2	JT-DNW-3
Wire diameter	0.4-0.65mm	0.65-1.8mm/0.8-2mm/0.65-2mm	1.0-2.2mm/1.2-2.5mm
Aperture/pitch	1/4",1/2"	1/2", 1", 1.5" ,2",2.5",3"	1", 2", 3", 4" ,5",6"
Aperture/pitch	6.25, 12.5mm	12.5, 25, 50mm	25, 50, 75, 100mm
Mesh width	Max.1m, 1.2m	Max.1.2m,1.5m, 2m	Max.1.2m, 1.5m, 2m, 2.5m
Motor	3kw	3kw; 4kw	4kw; 5.5kw, 7.5kw
Welding speed	Max.75 rows/min	Max.120-180 rows/min	Max.80-120 rows/min
Transformer	50kva*3	60kva4;60kva5, 60kva*7	70kva/80kva*5/6/7/8
Weight	1.5T	2T, 2.5T	2T, 2.5T, 3T, 3.5T

Auxiliary Equipments

Advantage

1.Easy operated

2.High production

3.Advanced technology electronics.

4.Separate control technology, make welding transformers working separately to reduce needed capacity.

5.Different position of button and control box with inverter (Taiwan Delta), not easily broken like before, easier to operate.

6.Sealed welding transformers, it has 8 degrees, can be adjusted for different wire diameters.

7.Square steel bottom instead of angle iron bottom. 1.5mm steel plate instead of 0.2-0.3mm steel plate, more stable.
