ISO High Safety 2600kg Fence Mesh Welding Machine

Ask Lasest Price
Brand Name :	JINTE
Model Number :	JT-W-AUO2325
Certification :	ISO CE
Price :	USD 24500-28000 /set
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	1 set/month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

ISO High Safety 2600kg Fence Mesh Welding Machine

Automatic Animal Breed Quatics Fowl Cage Wire Mesh Welding Machine

Product Description

Galvanized Steel Wire Mesh Welding Machine consists mainly of main machine for welding, material feeding mechanism, step-by-step mesh-grid-size-fixing mechanism, transverse wire falling mechanism, mesh falling and conveying mechanism, material storage rack, electric control system, air-driven system and water cooling system, etc.

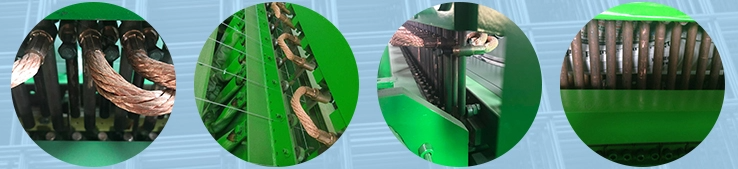

Product details

The welded wire mesh panel machine is full actomatic , from wire to panel all do well on this machia. The machie can straight wire welded panel , move panel. cut panel, flat panel.In this machine, the wire in stand can put into and the machine automatic do straight and then automatic welded.

Function features and advantages
1. This machine adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, press at one time, separate welding.
2. The line wire is fed from coil wires; the cross wire is pre-cut, fed from hopper driven by step motor.
3. Mesh pulling system adopts servo motor back and forward, adjusting the cross space by setting the parameters on the touch screen,different from traditional mechanical adjustment.
4. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.
5. The finished products can be roll mesh or panel.

Welding wire diameter	Φ0.6-Φ2.8(mm)	Voltage	380v -415V 3 phase electric 50HZ
Mesh size	1/4’’-4’’	Power	85KVAX6
Mesh width	600-2100(mm)	Dimension	2500×1500×1200 (mm)
Welding speed	80-120 times / min	Machine weight	2600kg
