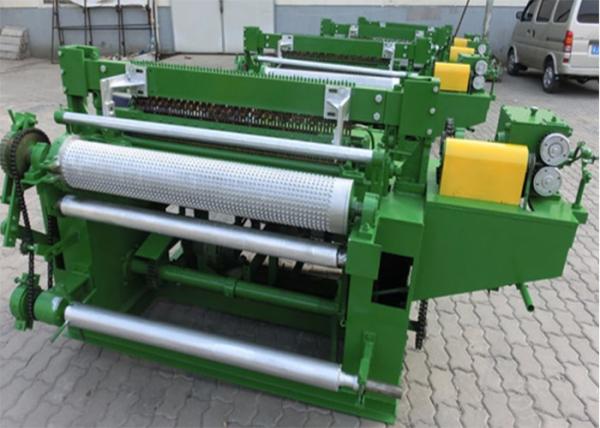

120 Mesh / Min Metal Panel Welded Wire Mesh Machine

Ask Lasest Price
Brand Name :	JINTE
Model Number :	JT-W-AUO2325
Certification :	ISO CE
Price :	USD 24500-28000 /set
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	1 set/month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

120 Mesh / Min Metal Panel Welded Wire Mesh Machine

Metal Storage Shelf Use Galvanized Welded Wire Mesh Deck Making Machine

Product Description

Galvanized Steel Wire Mesh Welding Machine consists mainly of main machine for welding, material feeding mechanism, step-by-step mesh-grid-size-fixing mechanism, transverse wire falling mechanism, mesh falling and conveying mechanism, material storage rack, electric control system, air-driven system and water cooling system, etc.

Product details

1.The welding mesh machine is fully automatic, from steel wire to plate all run well on this machine.

2.The device can weld the panel with straight wire and move the panel.Cut panel, flat panel.

3.The machine can put the wire inside the frame into the machine, make straight automatically, and then weld automatically.

Function features and advantages

1. This machine adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, press at one time, separate welding.

2. The line wire is fed from coil wires; the cross wire is pre-cut, fed from hopper driven by step motor.

3. Mesh pulling system adopts servo motor back and forward, adjusting the cross space by setting the parameters on the touch screen,different from traditional mechanical adjustment.

4. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.

5. The finished products can be roll mesh or panel.

Model	PDHW01	PDHW02	PDHW03
Mesh width	1200-1500mm	1200-1500mm	1200-1500mm
Mesh opening size	10-25mm	20-150mm	25-150mm
Wire Dia.	0.4-0.7mm	0.6-2.5mm	1.5-2.6mm
Welding Speed (Mesh/min)	120	100	85
Machine size	260017001800mm	317016001230mm	350018001500mm
Machine weight	2000kg	2500kg	3600kg
Outside transformer	Less than 80KVA	Less than 80KVA	Less than 80KVA
Welding length	25m or design on demand	25m or design on demand	25m or design on demand
