2m PLC Welded Wire Mesh Machine For Metal Panel

Ask Lasest Price
Brand Name :	JINTE
Model Number :	JT-W-AUO2325
Certification :	ISO CE
Price :	USD 24500-28000 /set
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	1 set/month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

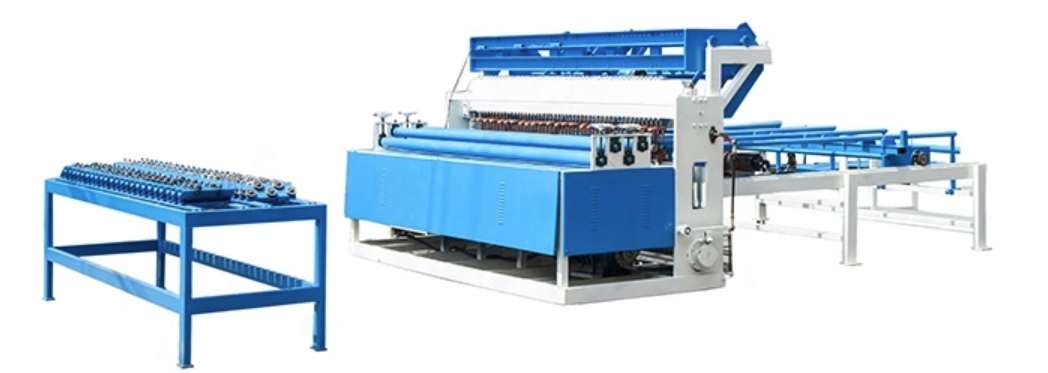

2m PLC Welded Wire Mesh Machine For Metal Panel

PLC Control Welded Wire Mesh Machine Automatic Best Price

Product Description

Galvanized Steel Wire Mesh Welding Machine consists mainly of main machine for welding, material feeding mechanism, step-by-step mesh-grid-size-fixing mechanism, transverse wire falling mechanism, mesh falling and conveying mechanism, material storage rack, electric control system, air-driven system and water cooling system, etc.

Product details

The welded wire mesh panel machine is full actomatic , from wire to panel all do well on this machia. The machie can straight wire welded panel , move panel. cut panel, flat panel.In this machine, the wire in stand can put into and the machine automatic do straight and then automatic welded.

Function features and advantages
1. This machine adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, press at one time, separate welding.
2. The line wire is fed from coil wires; the cross wire is pre-cut, fed from hopper driven by step motor.
3. Mesh pulling system adopts servo motor back and forward, adjusting the cross space by setting the parameters on the touch screen,different from traditional mechanical adjustment.
4. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.
5. The finished products can be roll mesh or panel.

Product name	PLC Control Weld Wire Mesh Machine Automatic Best Price
Application	Welded mesh panel
Control system	PLC (Programmable Logic Controller)
Machine width	2.0 meter
Wire diameter	2.0mm to 4.0mm
Mesh opening	20mm to 40mm
Please tell us your need size, we will design for your
Welded point numbers	101
Transformer power	160KVA*7pcs
Welded speed	80--90 times

Our Services

Delivery time: About a month when save your down payment, as the machine size and details. Please send message to us
Production: Provide pictures and videos to customers to check the production. Try our best to answer customers doubts.
Warranty: 1 year
After sale service:our engineer to your factory teach you operate the machine
