best price electric wire mesh panel netting machine for fencing in
rolls
Product description:

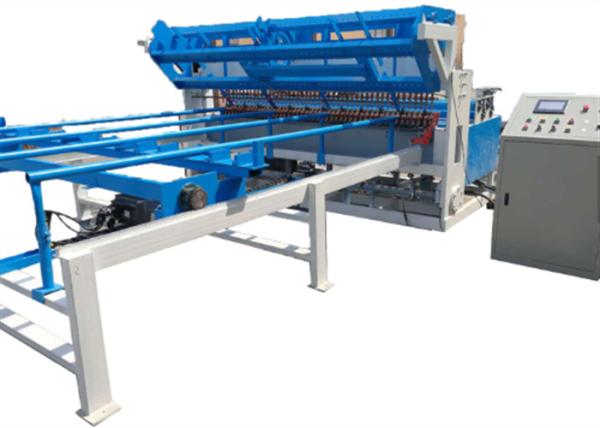

Automatic wire mesh welding machine production line is based on
customer requirements and many years of production experience to
upgrade and reform the entire production line.
Its greatest advantages are high productivity, high automation and
simple operation.
Normal operation of the machine requires only one person to
operate, the wire mesh panel products are smooth and beautiful, and
the automatic stacking is neat. Save a lot of labor and space.
Function features:
1. This machine adopts synchronous control technique. The
center-control and welding time are composed of Panasonic PLC
program system. The input front-panel has two forms, touch screen
and keyboard that makes the machine more intelligent and
reasonable.
2. The cross wire system is controlled by stepping motor. The
falling cross wire is automatically one by one. Increasing
productivity.The machine stops automatically if cross wires are
used up in the hopper.
3. Adjustable longitude wire space and weft wire space according to
your required mesh size.. The greatest advantage is that you can
adjust the space of longitude wire space and weft wire space at
random on the same one piece mesh panel.
4. Mesh pulling system is controlled by servo-motor (Panasonic
brand) that adopts elastic tension and opening positioning mesh, which improves the precision
of mesh opening size.
5. Welding transformer: 160KVA*6PCS(48 welding spots.) every 8
welding spots need one water cooling transformer.
6. Wire feeding way:The line wires and cross wires should be
pre-straightened and pre-cut, then be put by manual work.
7. Material:Suitable for galvanized wire, low carbon iron wire, MS
wire,ribbed wire, cold drawn wire and so on.
Product details

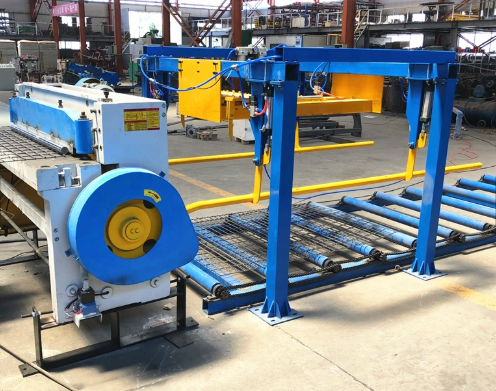

The welded wire mesh panel machine is full actomatic , from wire to
panel all do well on this machia. The machie can straight wire
welded panel , move panel. cut panel, flat panel.In this machine,
the wire in stand can put into and the machine automatic do
straight and then automatic welded.
| Product name | Fully automatic welded wire mesh machine |
| Application | Welded mesh panel |
| Control system | PLC (Programmable Logic Controller) |
| Machine width | 2.0 meter |
| Wire diameter | 2.0mm to 4.0mm |
| Mesh opening | 20mm to 40mm |
| Please tell us your need size, we will design for your |
| Welded point numbers | 101 |
| Transformer power | 160KVA*7pcs |
| Welded speed | 80--90 times |
OUR SERVICES
1.Guarantee period: 12 months for main frame.
2.Our engineers are available to install and maintain machine
overseas.
3.Factory price.
4.After sales:24-hour service.
6.Special equipment can be customized according to customer
requirements.
A: We have an inspection team to check the products at all stages
of the manufacturing process-raw material, welding process and test the finished products, etc. 100%
inspection in assembly line to achieve the required quality levels.
