Fully Automatic Grassland Field Cattle Fence Net Knitting Machine
Product Description
1. Full automatic grassland cattle fence net making machine, also called grassland fence machine, cattle fence machine, hinged joint fence machine.
2. Our machine is specially designed, with many advanced technologies, the machine quality is much better.
3. We supply 2 years free spare parts together with the machine.
4. We can design the machine according to your requirement.
Technical Parameters
| Model | CY-A | CY-B | CY-C | CY-D |
| Mesh width | 1427mm | 1880mm | 2000mm | 2500mm |
| Motor | 4kw | 5.5kw | 7.5kw | 11kw |
| Max. line wire number | 11 | 13 | 19 | 24 |
| Line size | Min.75mm or Min. 50mm if required |
| Weft size | 50-500mm(adjustable) |
| Twine wire diameter | 1.8mm-2.5mm |
| Line wire diameter | 1.8mm-3.0mm |
| Side wire diameter | 2.0mm-3.5mm |
| Twine wire tensile strength | 300-500N/mm² |
| Line wire tensile strength | 300-1400N/mm² |
| Max. work efficiency | 60rows/min |
| Voltage | 3phase, 380V/220V/415V/440V, 50HZ/60HZ |
| Size of the machine | 2.8×3.2×2.4m | 3.3×3.2×2.4m | 3.3×3.2×2.4m | 3.9×3.4×2.4m |
| Weight of the machine | 3T | 3.5T | 4T | 4.5T |
| Note: We can design the machine according to the customer’s request. |
Machine Advantages
1. Long service life and stable working.
2. Frequency-variable motor is controlled by Delta inverter, adjustable working speed, saving 30% energy. Schneider electric components, low failure rate.
3. Straightening rollers are specially designed for hard wire.
4. Every cross wire is equipped with one push rod, more powerful.
5. Gear cover protect the safety of operator, also protect the machine.
6. Pneumatic twisting and cutting, speed faster, high output power.
7. Twisted head is made of hardened mold steel, long service life.
8. Mesh roller is strong, easy to install and take off.
Packaging & Delivery
Packaging Details
1. The main machine and auxiliary equipments will be with plastic package, spare parts in carton box.
2. The main machine will be fixed in the container by steel wire rope to make it stable.
Port
Tianjin Port, China

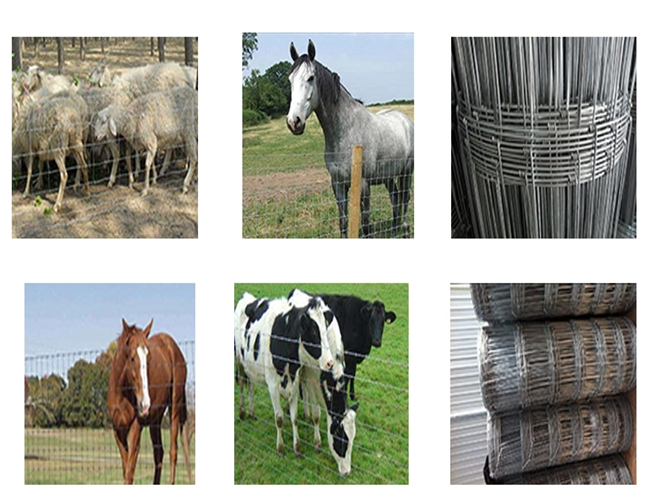

Product Application
FAQ
Q:Where is your factory located?
A: Our factory is located in Dingzhou, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 8 years since 2012. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
